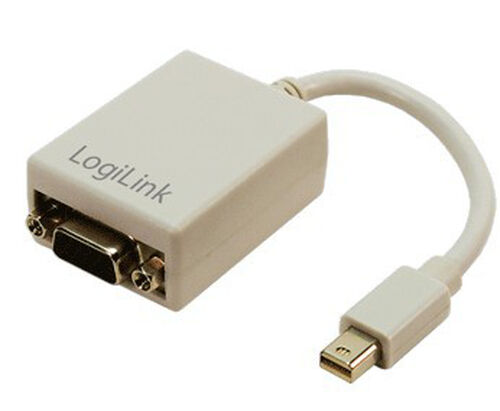

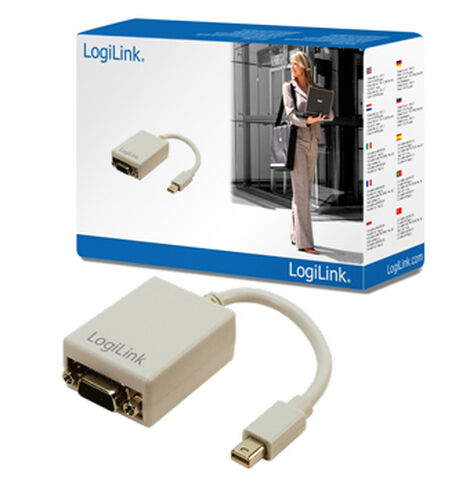

Mini DisplayPort-VGA Adapter

LogiLink Mini DisplayPort / VGA Adapter
Cable length: 0.09 m, Connector 1: VGA (D-Sub), Connector 2: Mini DisplayPortThe Mini DisplayPort to VGA Adapter lets you connect a high definition
monitor, projector, or LCD that uses a VGA connector or cable to
a MacBook or MacBook Pro with a Mini DisplayPort.
Specifications
- Mini DisplayPort 1.1a compliant receiver offering 5.4 Gbps band
width over 2 lanes
- Integrated triple 10-bit, 162 MHz video DAC for analog VGA signal
output
- Supports up to 1080p, 1920 x 1200 reduced blanking video
resolution
- EDID pass-through from PC source to display
- Spread Spectrum (de-spreading) for EMI reduction
- Automatic sink detection
- Low power standby mode operation initiated based on sink
detection status
- Powered from Mini DisplayPort source
- 3.3V IO, 1.2V Core
- Low power operation – Active 400mW, standby mode 15mW.
